Connect Via Ethernet

Windows XP is probably the easiest version of Windows to configure. For the Ethernet configuration, you need to know the IP address of your computer.

Find your IP Address

1. From the Start menu, choose Control Panel.
   Result: The Control Panel window appears.

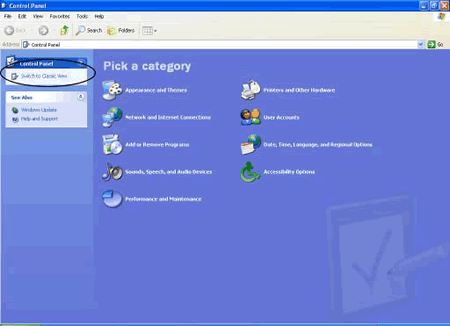

2.  If the Control Panels are set to Category View (about 9 icons listed), click the option in the upper left corner of the window labeled Switch to Classic View.

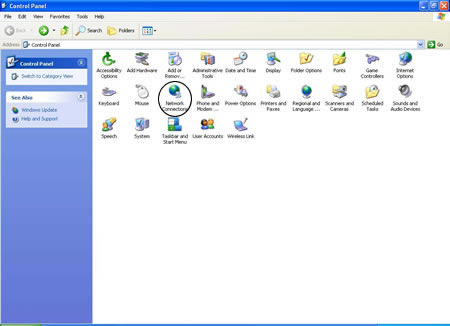

   Result: The Control Panel appears in "classic" view, that is, the way it looked in earlier Windows operating systems.


3. Double-click the Network Connections icon.

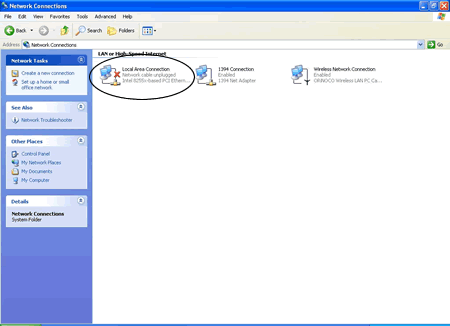

   Result: The Network Connections window appears. As in the illustration below, you may see other connection icons or you may not. Don't worry either way.


4.  Right-click on the Local Area Connection icon and click Properties. (Note: Local Area Connections is the default name. You can change the name by right-clicking and selecting Rename.)

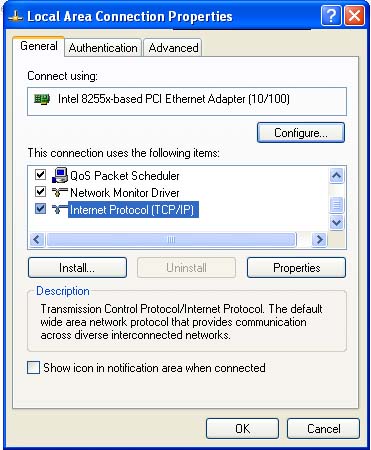

   Result: The Local Area Connection Properties window appears.



Configure TCP/IP

1. Select Internet Protocol (TCP/IP) and click the Properties button.

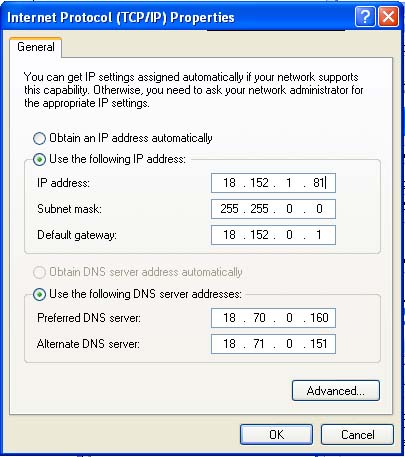

   Result: The Internet Protocol (TCP/IP) Properties window opens.


2.  Click on the Use the following IP address: radio button.
   Result: This activates the fields in the rest of the window and allows you to enter the necessary addresses.
3.  Complete the configuration fields as in the table below.

   This part of the configuration requires attention to detail, because one typo will prevent you from getting on the network. Be sure you have this information at hand when you start to configure the TCP/IP protocol:



   Field	Required Setting
   IP Address	18 .x.y.z (where x,y, and z are numbers)
   Subnet mask	255.255.0.0
   Default gateway:	18. x.0.1 (Where x matches the x in your IP address)
   DNS (Domain Name Servers)	18.71.0.151 18.70.0.160 18.72.0.3



   Enter these numbers in the appropriate fields and click OK.
4.  Continue to click OK or Close as appropriate until you return to the Network Connections screen. The Local Area Connection icon text should now say Enabled.

Test Your TCP/IP Settings

Launch your web browser. If you have completed the configuration successfully, the browser opens at your designated home page. If you have not completed the configuration, you will receive an error message that says that your browser was unable to connect properly. Go back and check your settings.



Connect Via Wireless

Once you have configured your computer for Ethernet connectivity, you can register for one of the mobile computer services that let you connect your laptop computer from many sites on campus either via a DHCP (Dynamic Host Configuration Protocol) or wireless.

To use this service, if you are not a student, you must have a valid static MITnet IP address which you do if you have just completed the Ethernet connectivity setup.

You will need the following

• An MIT ID card
• A Kerberos username and password
• MITnet web certificates



Connect Via Tether

Make a New Connection

1. From the Start menu, choose Control Panel.
   Result: The Control Panel window appears.
2. If the Control Panels are set to Category View (about 9 icons listed), click the option in the upper left corner of the window labeled Switch to Classic View.
   Result: The Control Panel appears in Classic view, that is, the way it looked in earlier Windows operating systems.
3. Double-click the Network Connections icon.
   Result: The Network Connections window appears.

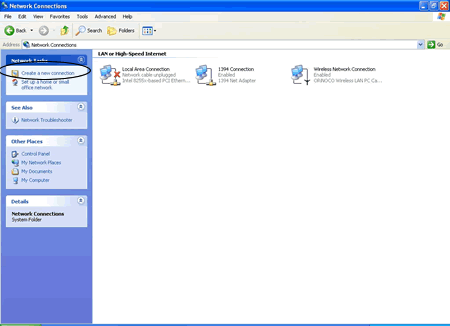

4.  Double-click on Create a new connection.
   Result: The New Connection Wizard is launched. To begin, click Next>.
5. Complete the New Connection Wizard as follows:

   1. Screen 1: Choose Connect to the Internet and click Next>.
   2. Screen 2: Choose Set up my connection manually and click Next>.
   3. Screen 3: Choose Connect using a dial-up modem and click Next>.
   4. Screen 4. In the ISP Name field, type Tether and click Next>.
   5. Screen 5: In the Phone number field, type 679-4000 and click Next>.
   6. Screen 6: Keep the default setting For anyone's use and click Next>.
   7. Screen 7: Do not enter your Kerberos username and password. Deselect Use this account
      name and password when anyone connects to the internet from this computer.
      Deselect Make this the default connection and click Next>.
   8. Screen 8: If you wish, click Add a shortcut to this connection to my desktop and click
      Finish.

      Result: You return to the Network Connections window, which has a new icon for Tether.

Configure TCP/IP

1. Right click on the Tether Dialup icon and select Properties.

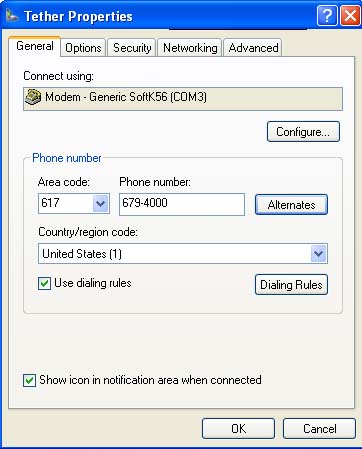

   Result: The Tether Properties window opens with the General tab selected.


2. Click Use dialing rules.
   Result: The Area code field becomes active.
3.  In the Area code field, type 617.

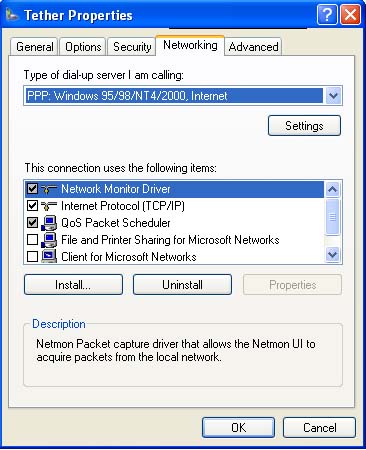

4.  Click the Networking tab.

Networking

1. In the Type of dialup server I am calling: field, select PPP: Windows 95/98/NT 4/200, Internet from the drop-down menu.
2.  In the This connection uses the following items: panel, check the Internet Protocol (TCP/IP) checkbox.
3.  Click Internet Protocol (TCIP/IP) to highlight it and click the Properties button.

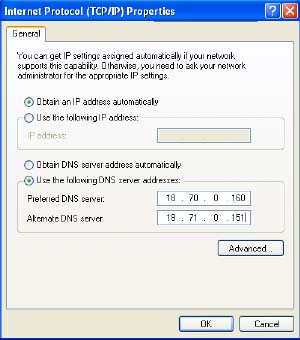

   Result: The Internet Protocol window appears.

   In this window, you add the DNS server addresses. DNS (Domain Name Service) lets you connect to another computer by typing in a name, for example, www.mit.edu.
4.  Make sure Obtain an IP address automatically is selected.


5.  Turn on the Domain Name Service. Click on the Use the following DNS server addresses: button.


6.  In the Preferred and Alternate DNS server fields, enter the following DNS addresses:

   18.70.0.160
   18.71.0.151
7. Click OK.

Test Your Connection

1. Plug the phone cable into your computer and the phone jack.
2.  Return to the Network Connections control panel and double click on the Tether Dialup icon.

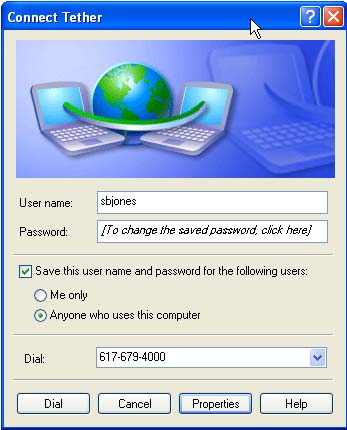

   Result: The Connect Tether window appears.


3.  Enter your Kerberos password and click Dial.
   Result: You hear some dialing and some screeching as the modem negotiates a connection with the MIT modem pool. When the connection is successfully established, you see a box with the message "Connected to MIT PPP."

   You are now connected to Tether. If you have any problems, check your configuration and make sure the phone line is plugged into the modem. If you still cannot make a connection, call the Service Desk at 253-1102 during working hours (Monday through Friday, 8am to 6pm).



Connect Via iPass

What is iPass?
iPass is a fee-based remote connection service for members of the MIT community who are traveling outside the Cambridge/Boston area and need to connect to the Internet and to MITnet.

With the iPassConnect client installed on your computer, a modem, and an MIT iPass account you can be just about anywhere in the world and connect to the Internet by dialing a local (or nearby) telephone number, saving long-distance toll charges (for example, compared to Tether or with an MIT calling card). In addition to standard modem dialup, high-speed wireless and wired broadband iPass connections are available at some airports, hotels, and conference centers worldwide. iPass operates by consolidating Internet service providers into a single global virtual network.

Connecting
Registration and use of iPass requires that you have a Kerberos username and password. Currently, iPass is available only to members of the MIT community whose usage fees can be charged to an Institute cost center. In the future, iPass will be available for personal use to MIT faculty, staff, and students, with billing through payroll deduction or student accounts.

Note: iPass is not intended to replace a dialup connection from your home that you use for more than four hours a month.

For more details, see iPass at MIT.

This page includes information on registration, system requirements, and links to further documentation.
